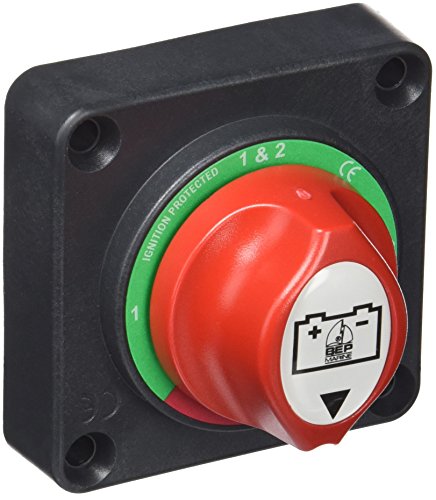

BEP 701S-PM Panel-Mounted Battery Mini Selector Switch

Brand: BEP

Features:

• Operation: 1-2-Both-Off, Rating: 200A DC Continuous (1hr) , 300A DC Intermittent (5 min), 1000A DC Cranking (10 sec), Voltage: 48V DC, Stud Size: 3x5/16" (8mm)
• Designed specifically for panel mount applications
• Countersunk recesses for surface mount application
• Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
• Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions

Binding: Sports

model number: 701S-PM

Part Number: 701S-PM

Details: Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.

EAN: 0870216005362

Package Dimensions: 6.1 x 3.5 x 3.2 inches
